Sample 10 Interpolation & Co


SYSTEM(Run = 1) DLG(TI='interpolation, integration, and differentiation', Edit='#Describe', Button='OK')
#Describe . The Akima-algorithm is used for numerical . interpolation, integration, and differentiation Call: . result = IPOL(xi, xyMTX [, parm3]) with: . xi interpolation x-value, no parm3 . integration: parm3 = upper limit, xi = lower limit . dy/dx: parm3 = xi - 1 . d2y/dx2: parm3 = xi - 2 . xyMTX matrix: . column 1 = x values . column 2 = y values .

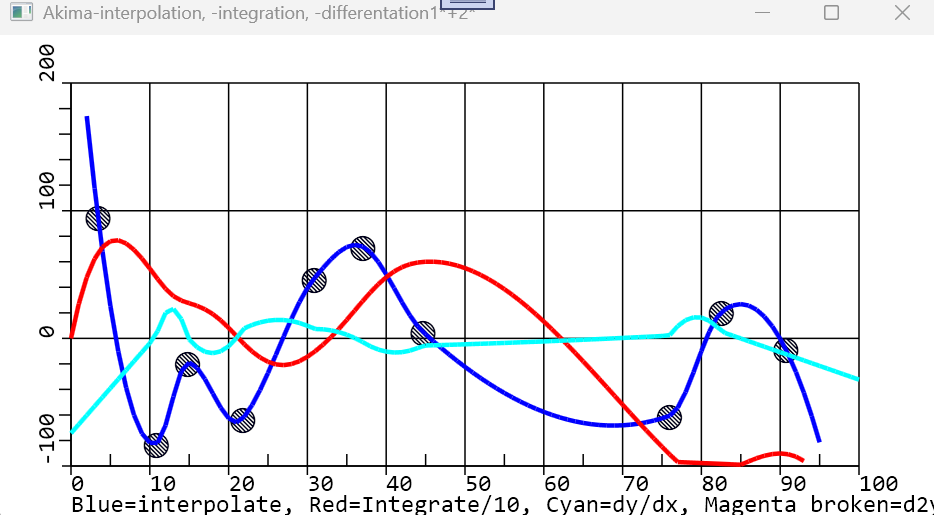

DO SET($max=10, yi=0, xA=0, xZ=100, dX=1, yA=-1, yZ=2) xymtx(10,2) = 0 ! define 10 rows/2 column xy matrix xymtx($,1) = RAN(50, 50) ! x is set to a random number 50+-50 xymtx($,2) = RAN(0, 100) ! y is set to random +-100 SORT(Column=1, Sort=xymtx) ! a SORTED x is required checks($) = ('Interpolate y(x)', 'Integrate(0,x)', 'dy/dx', 'd2y/dx2') DLG(Button='OK', CHeckbox=checks, Value=CHECKED) DLG(TI='Akima-interpolation, -integration, -differentation1*+2*', Rs=2, Cs=2, AX=2, TI='Blue=interpolate, Red=Integrate/10, Cyan=dy/dx, Magenta broken=d2y/dx2*10', Y=0, MIN=-100, MAX=200) LINE(Ax=2, COL=1, XV=xymtx, Col=2, YV=xymtx, S='🔴', D=-1) IF(INDEX(CHECKED, 'Interpolate')) DO xi = xA, xZ, dX yi = IPOL(xi, xymtx) ! interpolation for xi LINE(Ax=2, OneWayX=1, X=xi,Y=yi,W=3,D=9) ENDDO ENDIF IF(INDEX(CHECKED, 'Integrate')) DO xi = xA, xZ, dX yi = IPOL(xA, xymtx, xi) ! integral from start to xi yi = yi / 10 LINE(Ax=2, OneWayX=1, X=xi,Y=yi,W=3,D=900) ENDDO ENDIF IF(INDEX(CHECKED, 'dy/dx')) DO xi = xA, xZ, dX yi = IPOL(xi, xymtx, xi - 1) ! dy/dx at position xi yi = yi LINE(Ax=2, OneWayX=1, X=xi,Y=yi,W=3,D=99) ENDDO ENDIF IF(INDEX(CHECKED, 'd2y/dx2')) DO xi = xA, xZ yi = IPOL(xi, xymtx, xi - 2) ! d2y/dx2 at position xi yi = yi * 10 LINE(Ax=2, OneWayX=1, X=xi,Y=yi,W=3,Brok=1.2, D=909) ENDDO ENDIF ENDDO END
